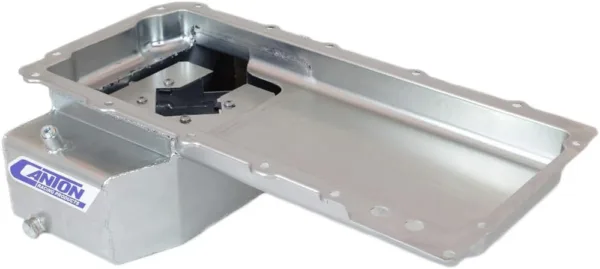

Canton 15-276 Oil Pan Road Race/Drift Front Sump 6-1/2 qt – 5-5/8 in Deep Steel
$597.77
- 6.5 qt System Capacity
- 4.25″ Stroke Clearance
- Diamond Shape Trap Door Baffle
- Bolt in Slosh Baffle
- 20 mm bung for low oil warning sensor (22-405 required if not used)
Did you like this product? Add to favorites now and follow the product.
Description
Compatible with GM LS-Series engines. This product is not created or sold by GM.;
Designed for LS1/LS6 powered cars that require a shallow front sump oil pan. This pan is designed to use the stock pickup part number #12572654 from the 04-06 GTO, and factory windage tray #12558189. Its diamond shaped baffle with 4 trap doors and removable windage/anti-slosh baffle provide the best oil control under demanding street and track conditions. With provisions for a pan mounted dipstick and 20 mm oil temperature sensor along with a 6.5 quart system oil capacity. Will not fit on LS Next 2 blocks. Use stock gasket.;
Important information
To report an issue with this product, click here.
Additional information
| Product Dimensions | 26.9 x 16.6 x 9.6 inches; 14.25 Pounds |
|---|---|
| UNSPSC Code | 25170000 (Transportation components and systems) Report an incorrect code |
| Date First Available | June 3, 2022 |
| Manufacturer | Canton Racing, Canton Racing Products |
